VoIP / SMPP packet sniffer

Continuous collection of all signaling and media packets for any traffic volumes.

SIP, H323, RTP, SMPP packet sniffer

Continuous logging of all signaling and media packets for any traffic volumes.

  • Instant SIP or SMPP packet flows for any call or transaction right from CDRs.
  • Public links to share signaling logs and media with your partners.
  • Ability to listen to logged VoIP conversations in any codec.
  • Full RTP statistics.

Convenient Call flows

The best way to start investigating a call or an SMPP transaction is, of course, a timeline chart of all the packets.

  • Appealing Call/SMPP flow charts with clickable packets to view their contents.
  • Call flows can show all legs and hunt attempts of a call if they are called from CDRs.
  • Easily remove the legs you dont need and share the rest with your partners.
  • Get .pcap files of only the chosen legs right from Call flows.
  • Listen to media in any codec for any leg in a Call flow.

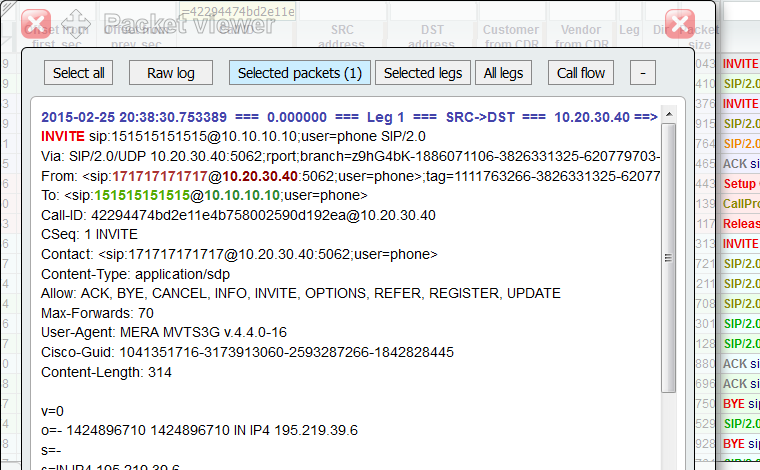

Packet viewer

View contents of just one packet, one leg, all legs in a call, or any manually chosen packets in one window.

  • Compare contents of 2 or more packets in parallel viewing windows. Or get a diff of 2 packets.
  • See a stamp on top of each packet with its capture time, direction, and IPs.
  • Easily navigate H.323 packets via collapsible tree structure.

RTP media collector

Quite often the only way to troubleshoot a problem is to listen to the actual media of a call.

  • Media can be collected either randomly for preset signaling/media IPs or source/destination number patterns, or fully.
  • A very productive media logger allowing to collect up to 10000 active calls on a good HDD subsystem.
  • Possibility to listen to each recorded call in any codec and view waveforms with a connect indicator. In and out streams are recorded in different stereo channels.
  • Full media statistics: packet losses, R-factor, MOS.

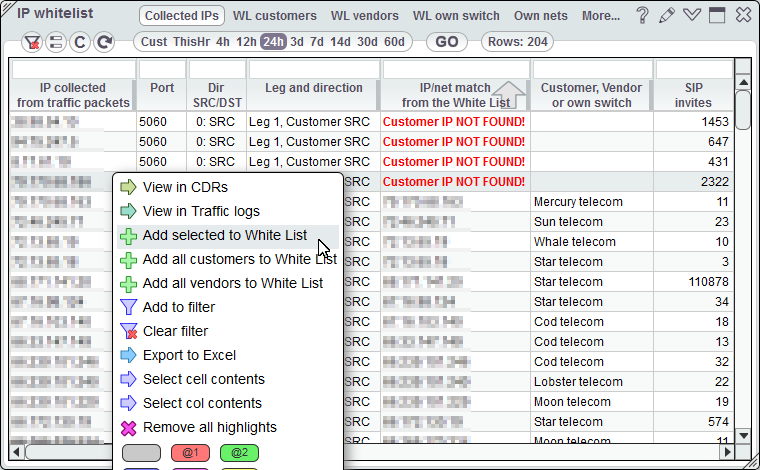

IP whitelist

Knowing if any unauthorized IP started sending traffic to your network can be vital.

  • 5gVision will collect information on every customer IP that your switch is processing traffic from, and will show you all of them.
  • If you recognize an IP, you may add it to a whitelist. Once a new IP that is not white-listed sends a certain number of invites or setups, you will get an alert.
  • The 5gVision IP whitelist may be a good safeguard not only from external intrusions, but also from your own engineering staff. Only a limited number of people managing your switch may have a right to add IPs to a whitelist.

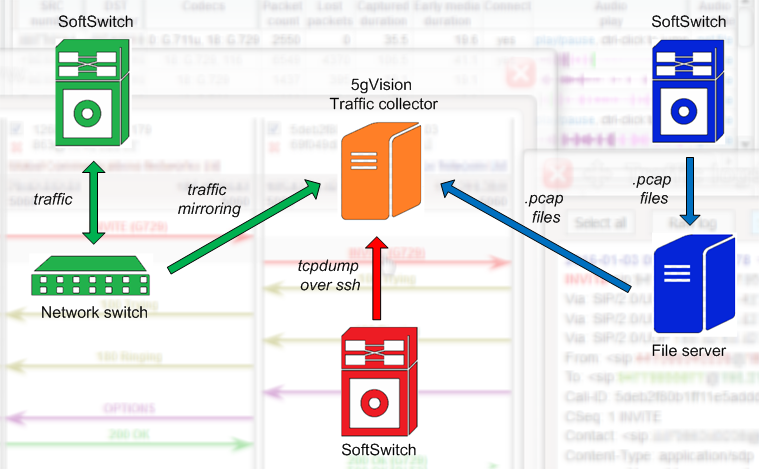

Highly productive sniffer

The 5gVision VoIP / SMPP sniffer that collects signaling logs and writes them to the DB may support continuous CPS of up to 1000 in the mirroring mode.

  • If setting up mirroring is not possible, packets can be collected over SSH with a special limited-rigthts user, or via a 5gVision local sniffer that will write .pcap files into a dedicated space on HDD. The files will than be loaded over SFTP and processed at the 5gVision server.
  • The RTP media logger can continuously collect up to 10000 active calls on a good HDD subsystem.
